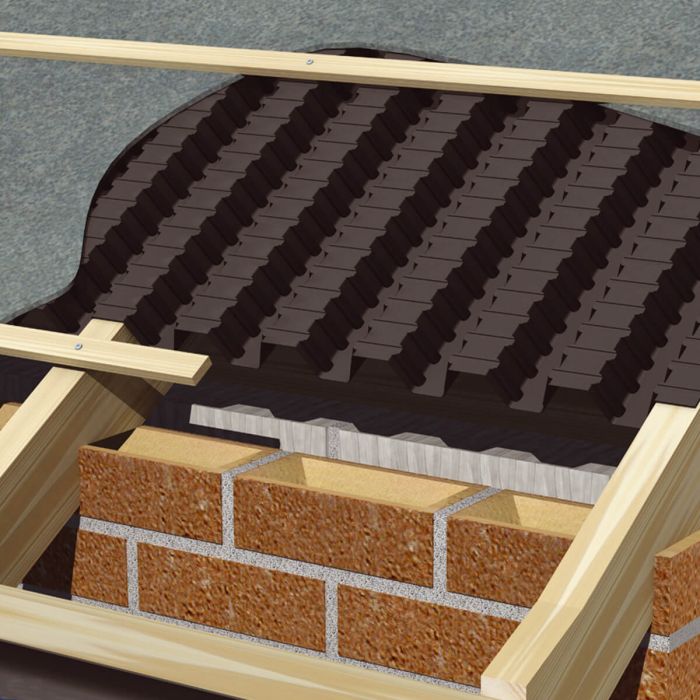

Manthorpe G502 Continuous Rafter Roll Eaves Panel Vent - 650mm x 6m

Manthorpe G502 Continuous Rafter Roll Eaves Panel Vent - 650mm x 6m is a continuous rafter roll eaves panel vent designed to maintain an open airflow path at the eaves, helping reduce condensation and prevent moisture build-up in the roof void.

It is laid at roof/eaves level over the rafters before the roof covering is completed. The roll panel helps stop roofing felt or membrane sagging into the eaves ventilation gap.

Best for

• Maintaining continuous eaves ventilation
• New roofs, re-roofs and roof refurbishments
• Roofs requiring a 650mm wide eaves roll panel

Key features

• Improves airflow from the eaves into the loft void
• Helps reduce condensation and trapped moisture
• Prevents the underlay from blocking the ventilation path
• Supplied as a roll for continuous installation along the eaves

Compatible with / used with

• Used with over-fascia vents, eaves vents, roofing underlays and pitched roof coverings
• Compatible with slate, concrete tile or clay tile roof systems where the eaves build-up is suitable
• External roof/eaves-level component; not a pipe, adaptor or fan connector

Ventilation performance

• Source data indicates 25,000mm² airflow capacity where specified for the eaves detail
• Final performance depends on the full eaves ventilation design

Things to consider before buying

• Choose the correct roll width for the rafter/eaves detail
• Use with a suitable continuous eaves vent where required
• Ensure loft insulation does not block the airflow path
