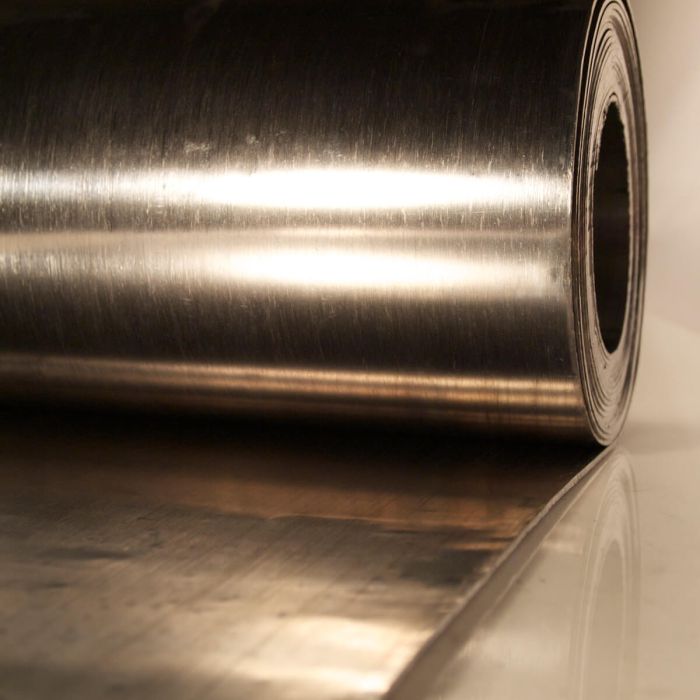

ALM Code 5 Milled Lead Roll - 915mm / 36 inch x 3m / 6m

ALM Code 5 Milled Lead Roll - 915mm / 36 inch x 3m / 6m is a heavy-duty milled lead sheet used where a thicker grade of lead is required for wider roofing and weathering details.

Code 5 lead is commonly used for flat roofs, parapets, box gutters, tapered valley gutters, dormers, bay tops, canopies, chimney flashings, abutments and other leadwork applications where a stronger, more durable sheet is needed. At 915mm wide, this roll is suitable for larger roof details where a 36 inch width is required.

Best for

• Flat roofs, bay tops, dormers and canopies
• Parapets, box gutters and tapered valley gutters
• Chimney flashings, abutments and wider roof weathering details
• Roofers needing a 915mm / 36 inch Code 5 lead roll

Key features

• Code 5 milled lead roll
• Width: 915mm / 36 inch
• Available in 3m and 6m roll lengths
• Thickness: 2.24mm
• Approximate weight: 69kg for 3m / 137kg for 6m
• BBA certified
• Manufactured to BS EN 12588:2006
• Heavy-duty, durable and weather-resistant
• Flexible enough to dress and shape on site
• Long-lasting and corrosion-resistant
• 100% recyclable

Used with / compatible with

• Roof tiles, slates and masonry abutments
• Chimneys, valleys, dormers, bay roofs, canopies, parapets and gutter details
• Patination oil, lead clips, lead sealant, lead underlay and suitable leadwork tools

Things to consider before buying

• Check that Code 5 lead is the correct grade for your application.
• Choose the correct width and roll length for the detail, allowing for laps, fixing points and thermal movement.
• For lighter soaker or small flashing work, Code 3 or Code 4 in a narrower width may be more suitable.
• Lead sheet should be installed in accordance with recognised leadwork guidance.
• Patination oil is usually recommended after installation to help reduce staining.
• This is a heavy product: 915mm x 3m is approximately 69kg and 915mm x 6m is approximately 137kg.
