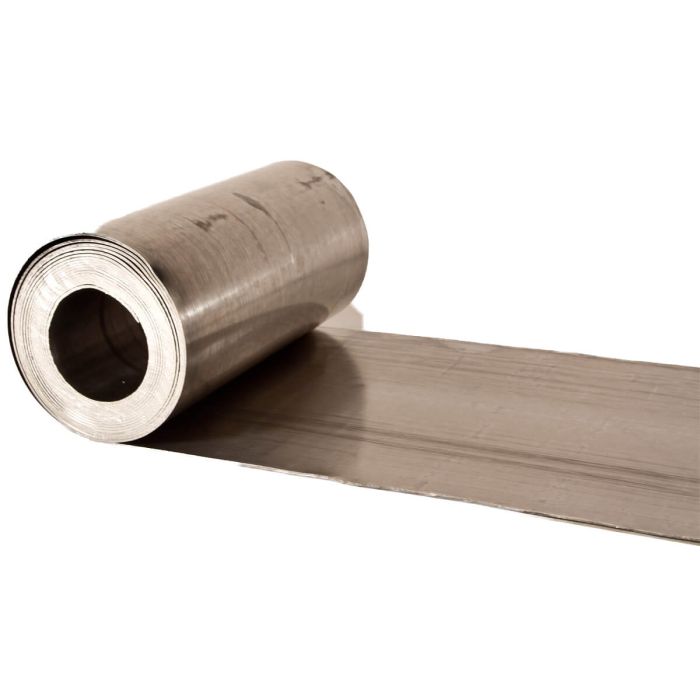

ALM Code 3 Milled Lead Roll - 180mm / 7 inch x 3m / 6m

ALM Code 3 Milled Lead Roll - 180mm / 7 inch x 3m / 6m is a lightweight milled lead sheet commonly used for window flashings, tile and slate soakers, and smaller pitched roof weathering details.

Code 3 lead is thinner and easier to dress than heavier lead codes, making it suitable for narrow flashing details and soaker work where a flexible, weather-resistant lead sheet is required. At 180mm wide, this roll is useful when a slightly wider option than 150mm is needed for small leadwork details.

Best for

• Window flashings
• Tile and slate soakers
• Small cover flashings and step flashing details
• Narrow pitched roof weathering details
• Roofers needing a 180mm / 7 inch Code 3 lead roll

Key features

• Code 3 milled lead roll
• Width: 180mm / 7 inch
• Available in 3m and 6m roll lengths
• Thickness: 1.32mm
• Approximate weight: 8kg for 3m / 16kg for 6m
• BBA certified
• Manufactured to BS EN 12588:2006
• Flexible and easy to shape
• Long-lasting and corrosion-resistant
• 100% recyclable

Used with / compatible with

• Roof tiles and slates
• Window openings, small abutments and soaker details
• Patination oil, lead clips, lead sealant, lead underlay and suitable leadwork tools

Things to consider before buying

• Code 3 lead is generally used for lighter applications such as soakers and smaller flashings.
• For heavier-duty flashings, chimneys, valleys, gutters, flat roofing or parapet work, a higher code such as Code 4 or Code 5 may be more suitable.
• Check that 180mm / 7 inch is the correct width for your flashing or soaker detail.
• Lead sheet should be installed in accordance with recognised leadwork guidance, including correct laps, fixings and allowance for thermal movement.
• Patination oil is usually recommended after installation to help reduce staining.
