Sandtoft Barrow Handcrafted Clay Plain Roof Tile

Product Code: SANDCYGPB
Material: Clay

Have a Question?

Our team have wealth of knowledge so why not pick their brains? Call us on 01306 770490.

Delivery Cost

Proceed to the Basket Page and use our Delivery Calculator for your order.

FREE Click & Collect

Simply proceed to the checkout and select one of our stores: Dorking (Surrey), Redhill (Surrey), East Grinstead (Sussex) and Esher (Surrey).

Related Products

Tyvek Supro Breathable Roof Underlay Felt 145gsm  50mtr x 1m / 50mtr x 1.5mtr - from About Roofing Supplies Limited

In stock

£93.95 (£112.74 Inc VAT)
Sandtoft Goxhill Handmade Traditional Clay Plain Roof Tiles - from About Roofing Supplies Limited

In stock

£1.26 (£1.51 Inc VAT)
Sandtoft Alban Handcrafted Clay Plain Roof Tile - from About Roofing Supplies Limited

Lead time confirmed upon order

£0.90 (£1.08 Inc VAT)

Details

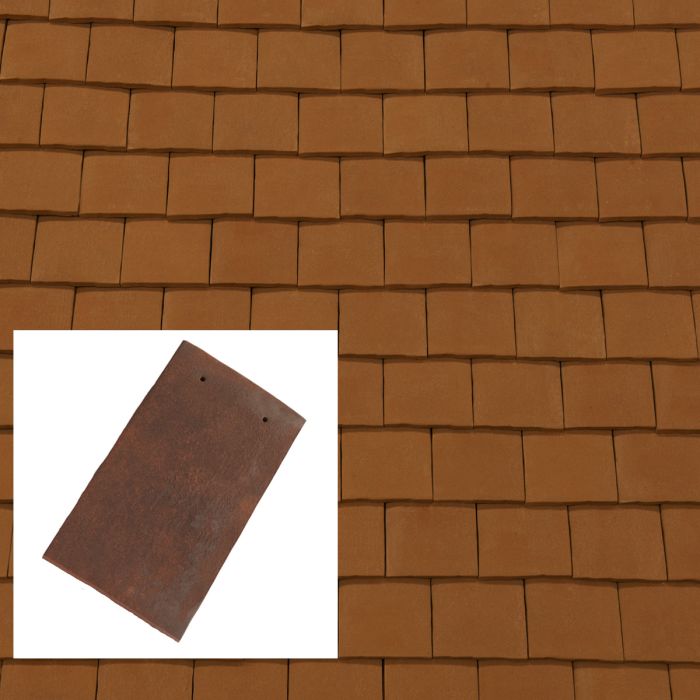

Sandtoft Barrow Handcrafted Clay Plain Roof Tile

Sandtoft Barrow Handcrafted Clay Plain Roof Tiles have a lightly sanded finish. Each tile has subtle irregular cross cambered form which creates the appearance of a traditional, aged roof with character.

Available in five colours - Burnt Oak, Dark Rusper, Bay Brown, Light Rusper and Red Basalt - which gives the appearance of an aged, blackened roof with subtle red tones.

Made from Sandtoft's extensive clay reserves which were formed over 10,000 years ago, and sanded by hand using recycled foundry sands.

Plain tiles are small and rectangular in format and have always been 265mm x 165mm (or in fact 10.5 inches x 6.5 inches) in overall size, requiring 60 tiles per square metre.

They perform by overlapping densely up to three tiles deep to achieve a watertight layer. It is this functional requirement that creates their distinctive detailed appearance, adding a sense of detail and texture to the roof. This character is enhanced by the effect of cambers longitudinally and across the width.

Features

  • Distinctive looks which will improve with age
  • Handcrafted
  • Cross Cambered
  • Durable
  • Easy To Lay
  • Traditional Appearance

Fixing

Sandtoft roof tiles must be laid and fixed to comply with BS 5534: the British Standard Code of practice for slating and tiling, and BS 8000: Part 6: the British Standard Code of practice for workmanship on building sites.

Technical specification

Batten

  • Batten Spacing: 100 mm (Roof) / 114 mm (Vertical)

Coverage

  • Covering capacity at maximum gauge: 60 tiles per m/2 (roof) / 53 tiles per m/2 (vertical)

Headlap

  • Headlap : 65mm (Roof) / 38mm (Vertical)

Material

  • Material: Clay

Minimum Roof Pitch

  • Minimum roof pitch: 35 degrees (roof) / 75 degrees (vertical)

Pallet Quantity

  • Quantity per pallet: 500
  • Supplied in multiples of 10

Tile Size

  • Size of tile: 265mm x 165 mm

Weight

  • Weight as laid: 60 kg per m/2 (roof) / 53 kg per m/2 (vertical)
  • Weight per 1000: 1.0 tonnes
  • Weight per tile: 1.0 kg
