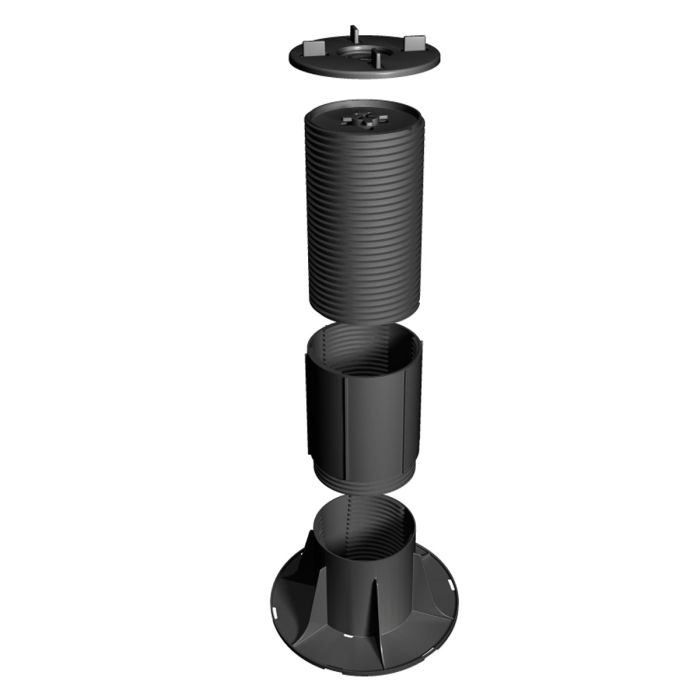

RynoPaveSupport RPF Fixed Head Adjustable Paving Pedestals

RynoPaveSupport RPF Fixed Head Adjustable Paving Pedestals is a adjustable paving pedestal for flat roof paving / decking support accessory applications, helping create reliable waterproof protection on flat roofs.

This adjustable paving pedestal sits above the flat roof waterproofing as part of a raised paving or decking support build-up. It helps create a level finished surface while protecting the membrane beneath when used with the correct protection layer.

Best for

• Raised paving or decking over flat roofs
• Balconies, terraces and walkways
• Projects needing level paving over roof waterproofing

Key features

• Brand: Ryno
• Perfect for very low height installations; adjusts down to 22mm
• Accommodates all types of calibrated paving - concrete, granite, porcelain, etc
• Material: PP Polypropylene UV resistant
• Resistant to moulds, algae, alkali, bitumen
• Compression: 1000kg
• Base Diameter: 200mm
• Head Diameter: 120mm
• Spacer tab thicknesses: 2mm / 4mm (standard) / 6mm

Application / installation

• Suitable for competent installers working to a level paving or decking layout

System components / used with

• Paving slabs, decking joists or support rails as appropriate
• Flat roof waterproofing and protection layer
• Shims, shockpads or spacer tabs where required

Ryno pedestal system information

• Designed for elevated paving areas over waterproofed flat roofs, terraces, balconies and podium decks.
• Helps create a level paved finish while leaving space below for drainage, services and maintenance access.
• Fixed-head pedestals are best suited to level surfaces where self-levelling adjustment is not required.
• The pedestal system can reduce the need for expensive and disruptive groundworks on suitable projects.

Things to consider before buying

• Check finished floor height, paving/deck thickness and load requirements before ordering
• Use a suitable protection layer above the waterproofing membrane
