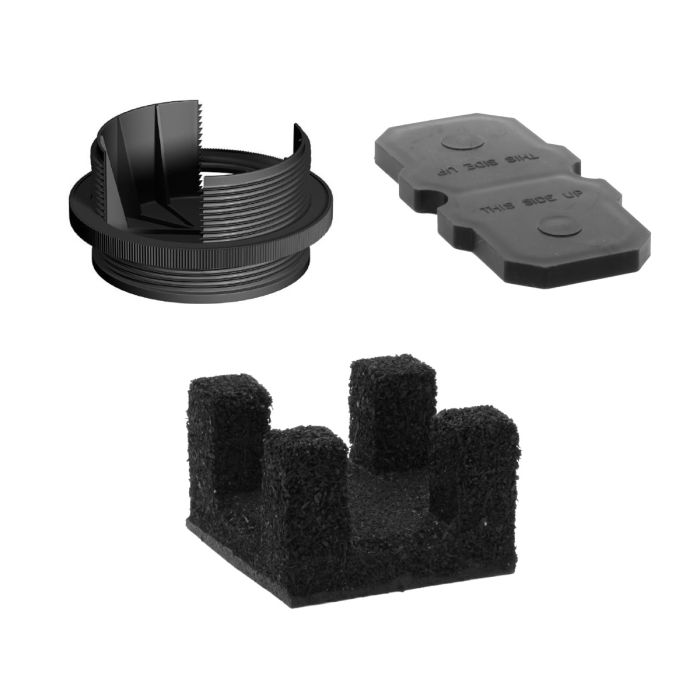

RynoDeckSupport RDC Decking Cradles & Decking Cradle Shims

RynoDeckSupport RDC Decking Cradles & Decking Cradle Shims is a decking cradle for flat roof paving / decking support accessory applications, helping create reliable waterproof protection on flat roofs.

This decking cradle sits above the flat roof waterproofing as part of a raised paving or decking support build-up. It helps create a level finished surface while protecting the membrane beneath when used with the correct protection layer.

Best for

• Raised paving or decking over flat roofs
• Balconies, terraces and walkways
• Projects needing level paving over roof waterproofing

Key features

• Brand: Ryno
• Material: Recycled Nylon (glass filled)
• Resistant to moulds, algae, alkali, bitumen
• Height Range: 10mm - 55mm
• Compression: 6 kN/m² (min. 6 cradles/m²)
• Base Diameter: 90mm
• Bearer width capacity: 44mm - 48mm
• MPN: RYNORDC
• RynoDeckSupport RDC cradles are the perfect solution where decking requires elevating off the ground by a minimal height.
• Simple to install and adjust, they are a very economical method of creating a clear space below the decking joists, which improves air circulation and can help to prevent rot.
• Size: 545mm

Application / installation

• Suitable for competent installers working to a level paving or decking layout

System components / used with

• Paving slabs, decking joists or support rails as appropriate
• Flat roof waterproofing and protection layer
• Shims, shockpads or spacer tabs where required

Ryno pedestal system information

• Designed for elevated paving areas over waterproofed flat roofs, terraces, balconies and podium decks.
• Helps create a level paved finish while leaving space below for drainage, services and maintenance access.
• The pedestal system can reduce the need for expensive and disruptive groundworks on suitable projects.

Things to consider before buying

• Check finished floor height, paving/deck thickness and load requirements before ordering
• Use a suitable protection layer above the waterproofing membrane
