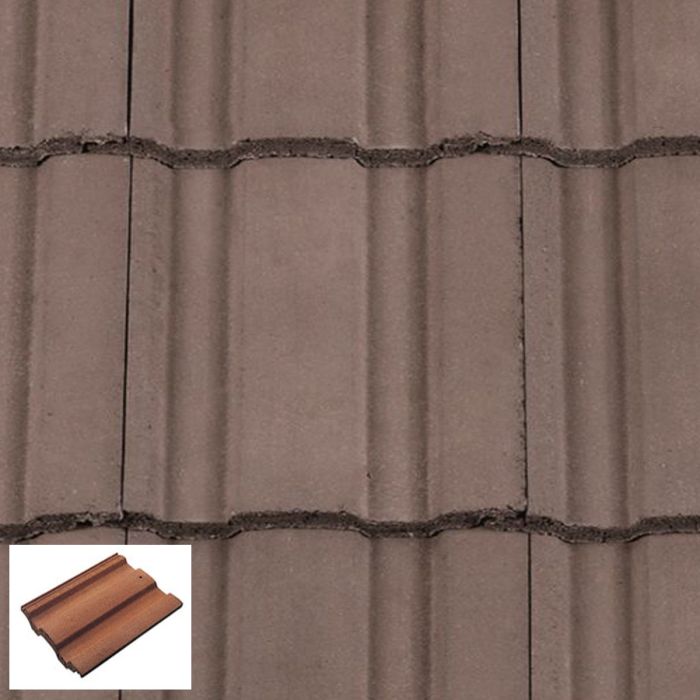

Redland Renown Concrete Interlocking Roof Tiles

Redland Renown Concrete Interlocking Roof Tiles

Product Code REDLCRWN

Material Clay

Description

Redland Renown Concrete Interlocking Roof Tiles

A neat, low profile roof tile designed to blend unobtrusively into its surroundings and give a contemporary feel to a roof with a square edged profile.

As with all interlocking concrete tiles, the Redland Renown is quick and easy to lay but also provides exceptional wind and driving rain performance.

Technical

Pallet Quantity

Tiles per Pallet: 240
Tiles per Pack: 40

Weight

Laid Weight: 46 kg/m2 at 318 mm gauge / 43 kg/m2 at 343 mm gauge
Weight per 1000 Tiles: 4.58 tonnes (approx)
Weight per Pallet: 1.11 tonnes (approx)

Minimum Roof Pitch & Headlap

Minimum Pitch & Headlap: Through Coloured: 17.5 degrees at 100mm headlap / 22.5 degrees at 100mm headlap
Granular: 22.5 degrees at 100mm headlap / 30 degrees at 75mm headlap
Maximum Pitch: 90 degrees subject to fixing specification
Maximum Headlap: 125 mm

Coverage

Hanging Length: 397 mm (approx)
Linear Cover of 1 Tile: 300 mm
Covering Capacity (net): 10.5 tiles/m 2 at 318mm gauge / 9.7 tiles/m2 at 343 mm gauge

Batten

Battens Required: 3.15 m/m2 at 318mm gauge / 2.92 m/m2 at 343 mm gauge
Batten Size: 38 x 25 mm rafter centres up to 450 mm / 50 x 25 mm rafter centres up to 600 mm
Nail Size: 50 mm x 3 mm

Tile Size

Tile Size: 418 mm x 330 mm
Tile Thickness: 26 mm

Gauge

Minimum Gauge: 293 mm
Maximum Gauge: Through Coloured: 318 mm below 22.5 degrees / 343 mm at 22.5+ degrees
Granular: 318 mm below 30 degrees / 343 mm at 30+ degrees
