Kima Inside / Out Roof Space & Loft Felt Vent

Kima Inside / Out Roof Space & Loft Felt Vent

Product Code VNTKIMAIO
  • Buy 10 for £5.49 (£6.59 Inc VAT) each and save 8%

Have a Question?

Our team have wealth of knowledge so why not pick their brains? Call us on 01306 770490.

Delivery Cost

Proceed to the Basket Page and use our Delivery Calculator for your order.

FREE Click & Collect

Simply proceed to the checkout and select one of our stores: Dorking (Surrey), Redhill (Surrey), East Grinstead (Sussex) and Esher (Surrey).

Related Products

Kima Outside / In Pitched Roof Felt Vent | About Roofing Supplies

Available

£5.99 (£7.19 Inc VAT) (£6.59 Inc VAT)
Manthorpe G700 Circular Soffit Vent White - from About Roofing Supplies Limited

Available

£0.60 (£0.72 Inc VAT) (£0.60 Inc VAT)
Manthorpe G630 Roof Felt Lap Ventilator  - from About Roofing Supplies Limited

Available

£2.50 (£3.00 Inc VAT)

Description

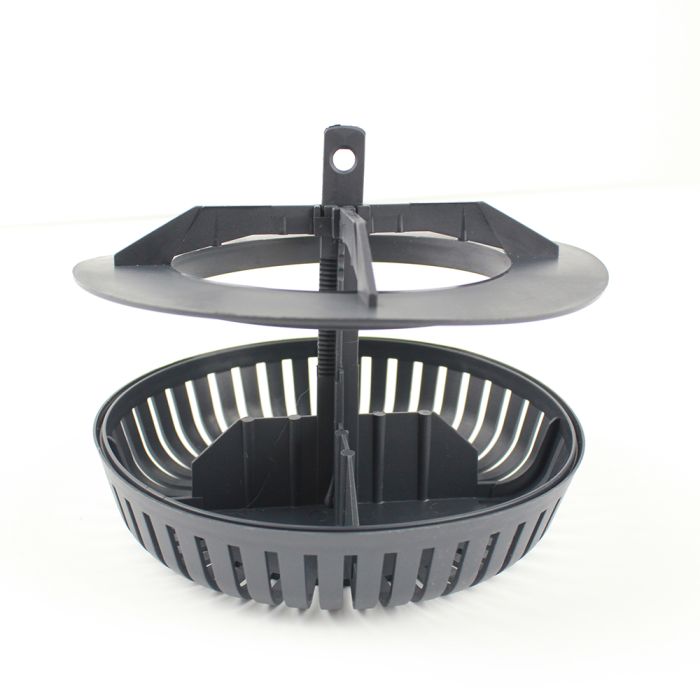

Kima Inside / Out Roof Space & Loft Felt Vent

The Kima Inside / Out Vent is a new and innovative felt vent which aims to tackle condensation build up in your loft space by encouraging airflow.

These vents are easily fitted by one person from inside the loft space avoiding the removal or replacement of the underlay membrane. This is a major advantage for the property owner as it is difficult and expensive to retrofit ventilation in a roof space once the roof tiles or slates have been laid.

As each vent features the innovative 'Snap-Lock' system, installation only takes minutes, making the Inside/Out Vent an easy-to-install product for home owners, DIYers and roofing / building contractors.

The Inside / Out vent is made from polypropylene, making it very lightweight and flexible. The vent is also tough and durable, with a long service life in your roof.

The Inside/Out Vent works with any type of breathable or non-breathable roofing underlay or membrane from 0.2mm -25mm thick, and is installed from the inside of the property.

Ideal for single renovations or multiple housing refurbishments, a major advantage of these vents is that they can be retrofitted to existing roofs from inside the loft space in minutes, obviating the need for scaffolding, external works or the removal of linings and underlays, benefits that combine to save money, time and effort.

With a venting area of 56cm2 per vent, these vents can be installed to achieve the required Building Regulations of 5mm continuous ventilation at the ridge. By simply installing one Kima vent per pitch truss next to a rafter, two tile battens down from the ridge, on either side of the ridge achieves this.

Please note: These vents are not suitable for connection to an extract fan or mechanical ventilation.

Technical

+ -

  • Material: Polypropylene
  • Airflow: 52cm/2
  • internal diameter: 95mm
  • Colour: Black

Features

  • Used to ventilate the loft space to avoid moisture and rot
  • Mounted in the roof from the inside - a great advantage, as it is often difficult to retrofit an under roof valve from the outside
  • Easy to install due to its Snap Lock assembly feature
  • Durable
  • Suitable for use with any roof membranes or felts with a thickness between 0.2mm = 25mm

Fixing

  • Outline the inner circle of the Inside/Out vent on the underlay
  • Cut a hole in the underlay from the outline
  • Squeeze the grill on the vent together and pass it through the hole
  • Whilst holding onto grill vent, place the Snap Lock through the middle of the outer vent.
  • Pull the Snap Lock towards you to tighten the vent in place
  • View the installation video (below) for further details
