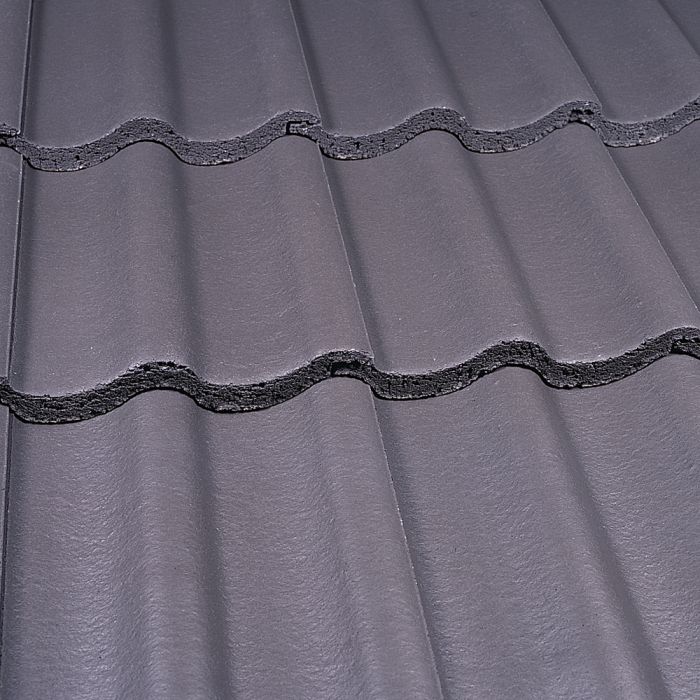

Marley Mendip Roof Tile - Interlocking Concrete - 420mm x 330mm - Smooth Grey

Marley Mendip Roof Tile - Interlocking Concrete - 420mm x 330mm - Smooth Grey is a concrete, interlocking double pantile roof tile for new builds, re-roofing and repairs where a traditional pantile-style profile is required.

It sits above the roofing battens and underlay as part of the outer pitched-roof covering, helping shed rainwater and form the finished roof appearance. Concrete interlocking tile is chosen for classic double pantile shape with an S-curve profile.

Best for

• New builds, re-roofing and roof repairs
• Suitable for matching existing roofs
• Projects where the roof tile / slate profile, size and colour need to be checked before ordering

Key features

• Interlocking profile helps weather protection and speed of installation
• Size: 420mm x 330mm
• Material: Concrete
• Colour / finish: Smooth Grey
• Appearance: classic double pantile shape with an S-curve profile

Sizes & coverage

• Size / specification: 420mm x 330mm
• Weight as laid: 49 kg per m² (100mm headlap) / 46 kg per m² (75mm headlap)
• Battens per m²: 3.1 linear m at 100mm headlap / 2.9 linear m at 75mm headlap
• Covering capacity: 10.5 tiles per m² (100mm headlap) / 9.7 tiles per m² (75mm headlap)
• Minimum roof pitch: 15 °
• Minimum pitch (smooth finish): 15 ° at 100mm headlap / 17.5 ° at 75mm headlap
• Minimum pitch (sandfaced finish): 25 ° at 100mm headlap / 30 ° at 75mm headlap
• Maximum pitch: 90 °
• Minimum headlap: 75mm
• Quantity per pallet: 192

Matching tiles & fittings

• Suitable for matching existing roofs, provided the profile, size and colour are checked before ordering
• Compatible with Marley ridges, verge systems, clips, fixings, battens and roofing underlay
• Check whether matching ridge tiles, verge systems, clips, nails, vents or other fittings are needed for the complete roof build-up

Things to consider before buying

• Check profile, size and colour against the existing roof before ordering, especially for repairs and extensions.
• Gauge, headlap and overlap affect both coverage and roof pitch suitability.
• Tile / slate coverage can change with roof pitch, exposure and fixing method, so allow for waste, cuts and breakages.
• Confirm the correct fixings, battens, underlay, ridge and verge components for the roof system.
• Colours and finishes can vary between batches and may weather over time, especially with clay and natural slate products.
