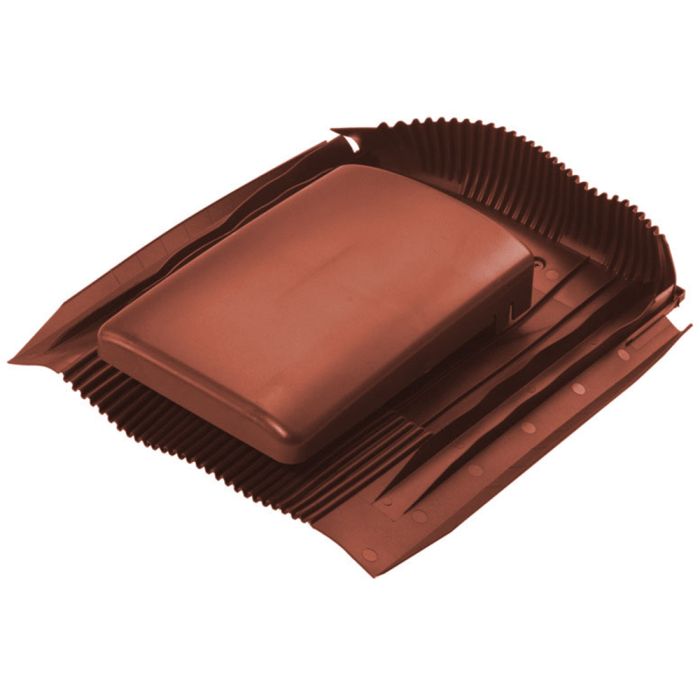

• New Product Focus: Manthorpe Curv Roof Vent Tile

• Low profile design
• Fully wind tunnel tested
• Rear oval spigot to ensure direct ventilation path and maximum airflow into the roof space
• Adaptor and flexpipe available separately to allow connection to soil ventilation or mechanical extraction
• Suitable for: Most popular interlocking and plain tile roofs with a pitch over 17.5 degrees
• Can be used for roof space ventilation or for soil ventilation or mechanical extraction when used with the optional soil/mechanical adaptor
• High or low level roof ventilation
• Complies fully with relevant Building Regulations and British Standards

Installation:

• The Tile Vent is positioned inline with the tile below and an opening is cut in the underlay
• Once the opening has been made in the underlay the back box is inserted through the opening until the Tile Vent nibs are located over the top of the batten
• The Tile Vent is then fixed into the batten through the nail hole within the Tile Vent and with the wire clip provided
• The front skirt is dressed onto a clean dry tile surface
• The roof tiles either side of the vent are then laid
• Prior to the tile above the vent being laid the upper skirt needs to be pushed down
• Tile battens would need to be cut if plain tiles are being used.
