Sahtas Southdown Plain Roof Tile - Clay - Handmade - Red

Product Code: SAHTASSOUTHPT
Material: Clay
Trustpilot
payments-option

Don't just compare product prices

Our low delivery rates mean your total order cost is often less than you'd expect. Check delivery rates on the basket page.

Right product for your project?

Talk to an expert. Call us on 01737 763008.

Want to buy in large quantities?

Call us on 01737 763008 to discuss bulk pricing.

FREE Click & Collect

Simply proceed to the checkout and select one of our stores: Dorking (Surrey), Redhill (Surrey), East Grinstead (Sussex) and Esher (Surrey).

View technical specification

Details

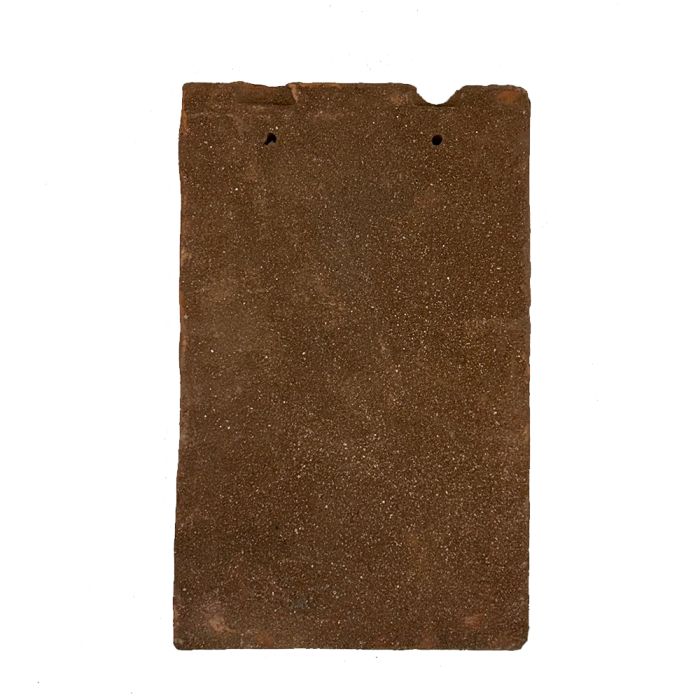

Sahtas Southdown Plain Roof Tile - Clay - Handmade - Red is a clay, handmade plain roof tile for heritage-style roofs, conservation projects, new builds, re-roofing and repairs where handmade clay character is required.

It sits above the roofing battens and underlay as part of the outer pitched-roof covering, helping shed rainwater and form the finished roof appearance. Handmade clay plain tile is chosen for handmade clay finish with natural variation, traditional colour tones and weathering character.

Best for

  • New builds, re-roofing and roof repairs
  • Suitable for matching existing roofs
  • Projects where the roof tile / slate profile, size and colour need to be checked before ordering

Key features

  • Handmade
  • Easy to Lay
  • Durable
  • Traditional handmade clay appearance
  • Plain tile format suitable for traditional roof details and vertical tiling where specified
  • Material: Clay
  • Colour / finish: Red
  • Appearance: handmade clay finish with natural variation, traditional colour tones and weathering character

Sizes & coverage

  • Weight as laid: 75 kg per m² (roof) / 66.2 kg per m² (vertical)
  • Batten per m²: 10 linear m
  • Covering capacity at maximum gauge: 60 tiles per m² (roof) / 53 tiles per m² (vertical)
  • Minimum roof pitch: 35 ° (roof) / 75 ° (vertical)
  • Headlap: 65mm (Roof) / 38mm (Vertical)
  • Batten Spacing: 100 mm (Roof) / 114 mm (Vertical)
  • Batten size: 38mm x 25mm
  • Quantity per pallet: 1200
  • Weight per 1000: 1.11 tonnes
  • Weight per tile: 1.1kg

Matching tiles & fittings

  • Suitable for matching existing roofs, provided the profile, size and colour are checked before ordering
  • Compatible with matching clay fittings, ridge tiles, hips, valleys, battens, tile nails and underlay
  • Check whether matching ridge tiles, verge systems, clips, nails, vents or other fittings are needed for the complete roof build-up

Things to consider before buying

  • Check profile, size and colour against the existing roof before ordering, especially for repairs and extensions.
  • Gauge, headlap and overlap affect both coverage and roof pitch suitability.
  • Tile / slate coverage can change with roof pitch, exposure and fixing method, so allow for waste, cuts and breakages.
  • Confirm the correct fixings, battens, underlay, ridge and verge components for the roof system.
  • Colours and finishes can vary between batches and may weather over time, especially with clay and natural slate products.
View more

Technical specification

Batten

  • Batten Spacing: 100 mm (Roof) / 114 mm (Vertical)
  • Batten per m/2: 10 linear metres
  • Batten size: 38mm x 25mm

Coverage

  • Covering capacity at maximum gauge: 60 tiles per m/2 (roof) / 53 tiles per m/2 (vertical)

Minimum Roof Pitch

  • Minimum roof pitch: 35 degrees (roof) / 75 degrees (vertical)
  • Headlap : 65mm (Roof) / 38mm (Vertical)

Technical

  • Quantity per pallet: 1200
  • Material: Clay
  • Nail size: 38 x 3.35mm aluminium shank clout head

Tile Size

  • Size of tile: 265mm x 165 mm

Weight

  • Weight as laid: 75 kg per m/2 (roof) / 66.2 kg per m/2 (vertical)
  • Weight per 1000: 1.11 tonnes
  • Weight per tile: 1.1kg
