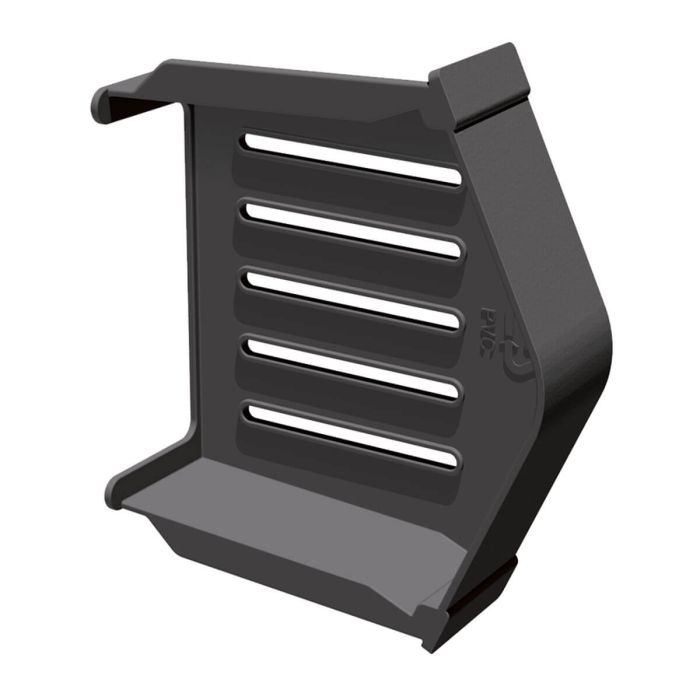

Manthorpe Smart Verge Dry Verge System GDV EC GR Eaves Closer Grey

Manthorpe Smart Verge Dry Verge System GDV EC GR Eaves Closer Grey

Product Code ANCMANSVECGR
Colour Grey

Have a Question?

Our team have wealth of knowledge so why not pick their brains? Call us on 01306 770490.

Delivery Cost

Proceed to the Basket Page and use our Delivery Calculator for your order.

FREE Click & Collect

Simply proceed to the checkout and select one of our stores: Dorking (Surrey), Redhill (Surrey), East Grinstead (Sussex) and Esher (Surrey).

Related Products

Manthorpe Smart Verge Dry Verge System GDV LH GR Left Hand Verge Grey - from About Roofing Supplies Limited

Call for availability

£4.35 (£5.22 Inc VAT) (£5.10 Inc VAT)
Manthorpe Smart Verge Dry Verge System GDV RH GR Right Hand Verge Grey - from About Roofing Supplies Limited

Call for availability

£4.35 (£5.22 Inc VAT) (£5.10 Inc VAT)
Manthorpe Smart Verge Dry Verge System GDV END A GR Angled Ridge End Cap Grey - from About Roofing Supplies Limited

Call for availability

£5.23 (£6.28 Inc VAT) (£5.94 Inc VAT)

Description

Manthorpe Smart Verge Dry Verge System GDV EC GR Eaves Closer Grey

Manthorpe Smart Verge Dry Verge is a fast-fit Dry Verge System that provides an extremely cost-effective alternative to mortar that avoids all of the long-term maintenance problems, and the costs, that are often associated with traditional mortar bedding.

The individual verge units cap the end of each course of tiles to provide an unobtrusive, weatherproof cover whilst preserving the ‘stepped’ appearance of the roof tiles.

Each run of verge units will need an Eaves Closer at the end (the eaves course).

Hundreds of storms batter the UK every year, and with each there is a growing realisation that mortar is a costly and unreliable means of securing ridges, hips and verges.

With the Manthorpe fast fit dry verge systems you have an alternative that saves you time, increases your efficiency & delivers significant benefits.

The traditional methods of securing the ridge, verge, hip, and valley details of a roof with so called ‘wet’ trades are now being replaced in modern roof construction in favour of the security and flexibility offered by dry fix systems.

Experience has shown that when traditional mortar is used to secure details such as the ridge and verge it will usually fail during the life of the building leading to costly remedial work to areas of a property which are notoriously difficult to access.

These ‘wet’ trades are also time consuming, labour intensive and are hindered by adverse weather conditions such as rain and cold temperatures.

Dry fix systems can offer the installer considerable advantages over traditional methods, providing high performance, easy to fix, maintenance free solutions which can not only speed up the job on site, but also offer long term financial benefits.

More and more roofers & builders are turning to Manthorpe dry fix roofing because of the advantages it offers in terms of security, cost and installation and to escape the mess and complication of mortar based roofing techniques.

Due to the nature in which the systems are fitted, there is no need for the use of mortar, making the task of finishing the verge quick, easy and clean, as well as making it possible during frosts and other adverse weather conditions.

For further details visit Manthorpe's website here

Technical

Technical + -

  • Suitable for use with varying batten gauges between 280mm & 345mm
  • Intended for use on roof structures with a pitch between 15 degrees & 55 degrees

Product Details + -

  • Manufactured from a robust uPVC material

Certification + -

  • Independently wind tunnel tested by the BRE
  • Testing complies with the requirements of BS6399-2 1997 Code of Practice for Wind Loads
  • Complies with BS 5534 requirements for the mechanical fixing of roofing details

Features

  • Due to the nature in which the systems are fitted, there is no need for the use of mortar, making the task of finishing the verge quick, easy and clean, as well as making it possible during frosts and other adverse weather conditions
  • Manthorpe SmartVerge system is designed for use with large format interlocking concrete tiles, including those with a deep profile
  • Fast and easy to fit in all weather conditions
  • Weatherproof and maintenance free
  • Extremely secure, mechanically fixed
  • Manufactured from a robust uPVC material
  • Suitable for use with varying batten gauges between 280mm & 345mm
  • Compatible with most types of large format interlocking concrete tiles
  • Can be installed onto a new build roof and fitted retrospectively in a refurbishment situation
  • Intended for use on roof structures with a pitch between 15 degrees & 55 degrees
  • Verge units can be nailed directly into the ends of the tile battens or into an additional timber batten strip
  • Designed to restrict the entry of birds and large insects into the roofspace.

Fixing

Full fitting instructions are also available to download from Manthorpe's website here
