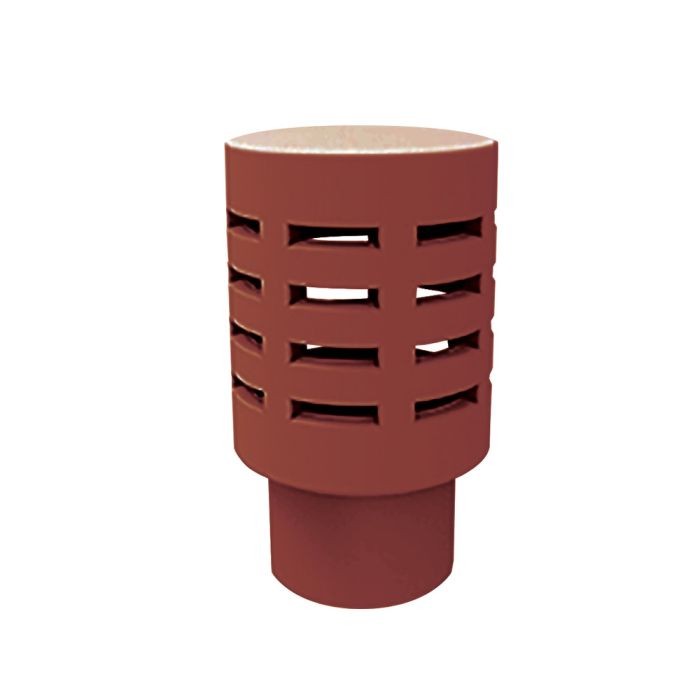

Clay GC2 Gas Flue Chimney Terminal 185mm Spigot Red / Buff / Blue Black / Glazed

Clay GC2 Gas Flue Chimney Terminal 185mm Spigot Red / Buff / Blue Black / Glazed

Product Code REDBGC2
Size Spigot Width - 185mm
Material Clay

Product Options:

Related Products

Brewer Chimney Capper Prevents Rain, Birds and Debris Terracotta Red - from About Roofing Supplies Limited

Brewer Chimney Capper Prevents Rain, Birds and Debris Terracotta Red

Available

£12.85 (£15.42 Inc VAT)

Description

Clay GC2 Gas Flue Chimney Roof Terminal Red / Buff / Blue Black / Glazed with 185mm Spigot suitable for chimneys venting gas fired appliances.

Please note:

Due to the extremely large number of different types of gas fire available, we would recommend that the appliance manufacturer is contacted, to confirm which type of pot/terminal would be suitable for use with their appliance.

Limited Application Suitability:

  • Not suitable for use with Decorative Fuel Effect gas fires and Inset Live Fuel effect gas fires requiring minimum 175mm dia flue or solid fuel open fires and appliances.
  • Not suitable for use with solid fuel open fires or appliances.

Available in Red clay, Buff clay, Blue Black finish & Glazed finish

Please note that the Glazed and Blue Black Finishes are coatings applied onto the natural clay product to achieve a contemporary finish.

*** PLEASE NOTE THAT NOT ALL SIZES & COLOURS OF THESE PRODUCTS ARE KEPT IN STOCK THEREFORE A LEAD TIME OF APPROXIMATELY 10 - 14 WORKING DAYS MAY APPLY. PLEASE CONTACT US BEFORE ORDERING TO CONFIRM ***

Technical

Dimensions + -

  • Weight: 9.90 kg
  • Height: 380mm (approx)
  • Diameter: 245mm (approx)
  • Spigot External Diameter: 185mm (approx)
  • Spigot Internal diameter: 150mm (approx)
  • Spigot Height: 100mm (approx)

Application + -

  • Maximum recommended flue size:200mm x 200mm internal square / 225mm internal diameter

Certification + -

  • Certification: Tested to BS1289

Suitability + -

  • Due to the extremely large number of different types of gas fire available, we would recommend that the appliance manufacturer is contacted, to confirm which type of pot/terminal would be suitable for use with their appliance.

Features

  • Suitable for chimneys venting gas fired appliances
  • Long service life

Fixing

  • Inspect existing chimney for cracks and ensure the inside is clear and free of debris
  • Check that the cement benching is sound and the pot is fully secure
  • Clean the bore and joint face of the pot Inspect the gas terminal.
  • Confirm it is undamaged and ensure all surfaces are clean and free of debris
  • Mix the mortar with brick coloured dye and apply a bead of mortar to the top face of the pot
  • Carefully insert the spigot of the gas terminal into the pot and lightly press down onto the mortar joint
  • Align the gas terminal vertical and trim off excess mortar.
  • Ensure the mortar is smooth and tapered out, to allow the rain to run down the outside of the chimney pot
