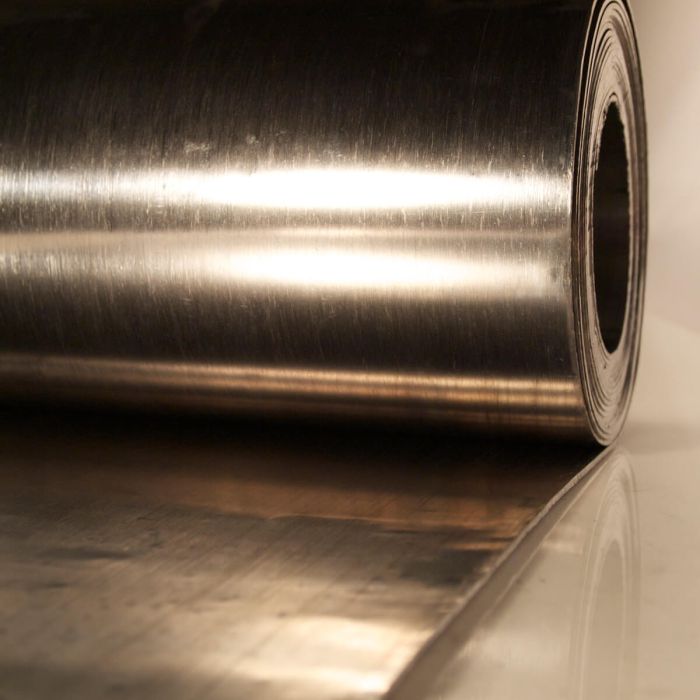

ALM Code 5 Milled Lead Roll - 1220mm / 48 inch x 3m / 6m

ALM Code 5 Milled Lead Roll - 1220mm / 48 inch x 3m / 6m is a heavy-duty milled lead sheet used for roofing weathering details where a thicker, more durable grade of lead is required.

Code 5 lead is commonly used for flat roofs, parapets, box gutters, tapered valley gutters, bay tops, canopies, dormers, flashings and other lead detail work. It is also suitable for pitched roofing applications such as abutments, chimneys, valleys and weathering details where the correct code, width and fixing method are specified.

Best for

• Flat roofs, bay tops, dormers and canopies
• Parapets, box gutters and tapered valley gutters
• Roof flashings, abutments, chimneys and lead weathering details
• Roofers needing a wider 1220mm / 48 inch Code 5 lead roll

Key features

• Code 5 milled lead roll
• Width: 1220mm / 48 inch
• Available in 3m and 6m roll lengths
• Thickness: 2.24mm
• Approximate weight: 93kg for 3m / 186kg for 6m
• Manufactured to BS EN 12588
• Durable, flexible and weather-resistant
• Can be dressed and formed for a wide range of roofing details
• 100% recyclable

Used with / compatible with

• Roof tiles, slates and masonry abutments
• Chimneys, valleys, gutters, parapets and flat roof details
• Patination oil, lead clips, lead sealant, lead underlay and lead working tools

Things to consider before buying

• Choose the correct lead code, width and roll length for your application.
• Lead sheet should be installed in accordance with recognised leadwork guidance, including correct laps, fixings and allowance for thermal movement.
• Patination oil is usually recommended after installation to help reduce staining.
• This is a heavy product: 1220mm x 3m is approximately 93kg and 1220mm x 6m is approximately 186kg.
